Combination Hammer with Self Dust Collection
26 mm (1″) 2.2 J Combination Hammer with HEPA Self Dust Collection, SDS-PLUS Bits
- HEPA Filter Removes Particles with an Efficiency Rating of 99.75%
- Dust collecting port on telescopic guide with a sliding range of 190 mm enables to accept longer drill bits
- Secure connection between dust case and dust collecting section for less dust leakage
- See-through dust case for easy checking of collected dust amount
- Easy dust case removal for convenient dust disposal and cleaning
- Easy to adjust position of dust collecting port
- A desired drilling depth can be obtained simply by sliding a push button on telescopic guide
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
- Soft grip provides more comfort and control
- Powerful 800 W motor delivers 2.2 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- 3-Mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
- Variable speed trigger allows operator to adjust speed based on materials or application
- Depth gauge for increased drilling consistency
- Recessed lock-on button for continuous use
- Double insulated
Combination Hammer

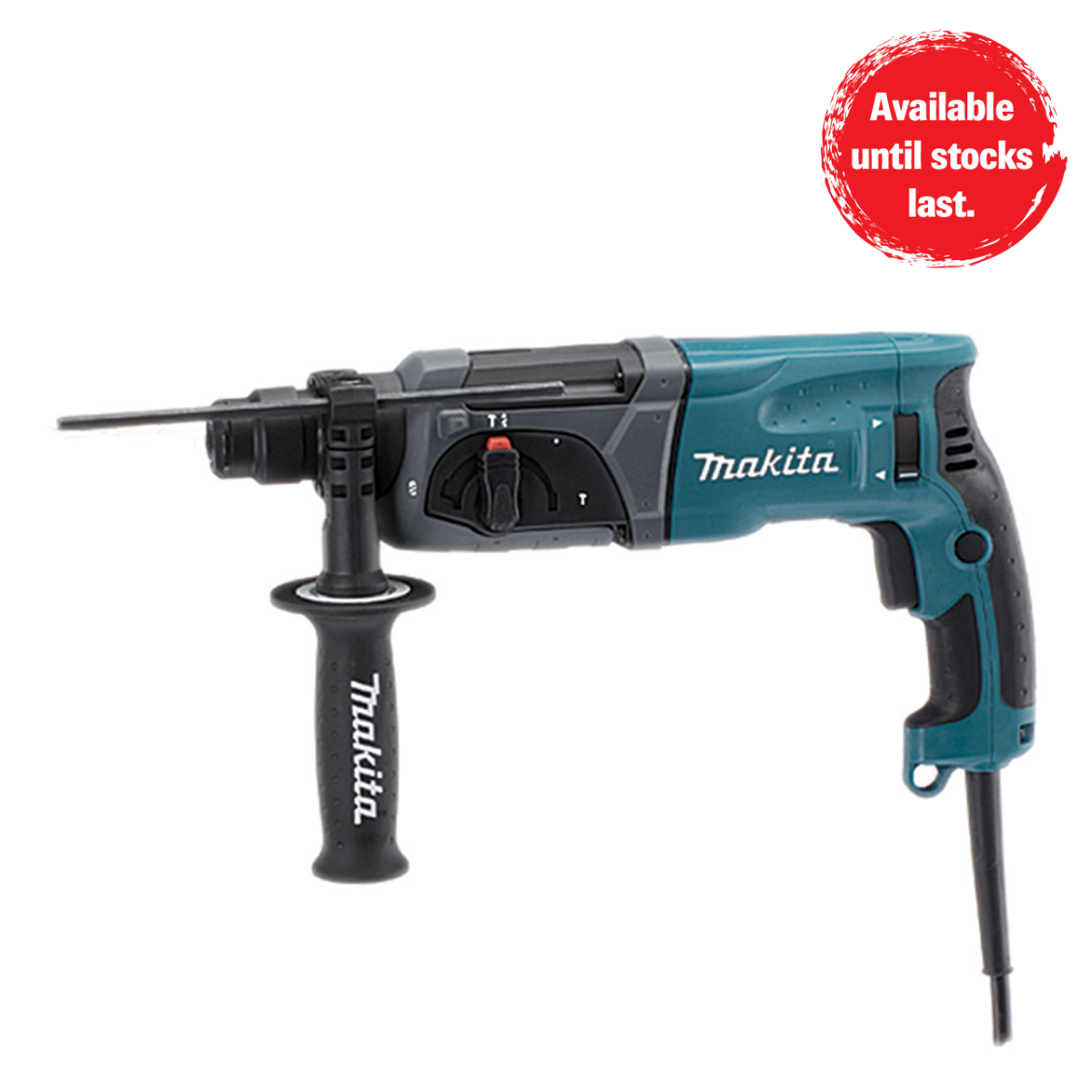

26 mm (1″) 2.4 J Combination Hammer, SDS-PLUS Bits
- Re-located operating mode lever for increased protection and durability; enables switch to rotate both left and right
- Improved bit guide for increased bit stability during drilling applications
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
- Soft grip provides more comfort and control
- High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
- Compact & Lightweight design obtained by minimizing motor weight, with a newly designed tool-structure
- Powerful 800 W motor delivers 2.4 J of impact energy to handle the most demanding applications
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
- 3-Mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- Variable speed trigger allows operator to adjust speed based on materials or application
- 40 Bit angle settings allow the bit to be set at optimum positions
- One-touch sliding chuck for easy bit installation and removal
- Depth gauge for increased drilling consistency
- Recessed lock-on button for continuous use
- Optional dust cup connectable to Makita vacuum cleanesr without joint parts
- Double insulated
Combination Hammer
24 mm (15/16″) 2.4 J Combination Hammer, SDS-PLUS Bits
- High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
- Extended life brushes are longer for more work between service intervals and less downtime
- Speed and torque in reverse are the same as forward rotation by using brush holder unit
- Powerful 780 W motor delivers 2.4 J of impact energy to handle the most demanding applications
- Torque limiter engineered to prevent gear damage by automatically disengaging gears if the bit binds
- 40 Bit angle settings allow the bit to be set at optimum positions
- 3-Mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- “No hammering when idling” function helps increase tool life
- Ergonomic “Pistol-shaped” handle with soft grip for increased comfort and control
- One-touch sliding chuck for quick bit changes
- Recessed lock-on button for continuous use
- Rubber housing bumper protects mode selector switch and gear housing from damage
- Variable speed control enables user to match the speed to the application
- Depth gauge for increased drilling consistency
- Connectable to Makita vacuum cleaners
- Double insulated
Rotary Hammer
52 mm (2-1/16″) 19.1 J Rotary Hammer, SDS-MAX Bits
- Powerful 1,510 W motor delivers 19.1 J of impact energy to handle the most demanding applications
- Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- LED service light notifies the user approximately 8 hours before the brushes need to be replaced
- LED power light indicates switch failure or cord damage
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Depth gauge for increased drilling consistency
Rotary Hammer
40 mm (1-9/16″) 6.1 J Rotary Hammer, SDS-MAX Bits
- Built-in torque limiting clutch disengages if bit jams
- Powerful 1,050 W motor delivers for the most demanding applications
- One-touch sliding chuck for quick & easy bit changes
- Dual mode operation rotation with hammering and hammering only
- Soft grip helps reduce vibration felt by the end-user
- No hammering when idling increases the tool life and performance
- Chisel lock allows the end-user to set their chisel in one of 12 positions
- Built-in torque limiter ensures stable torque control
- Soft grip helps reduce vibration felt by the end-user
- Recessed operation mode switch helps prevent it from being damaged
- Depth gauge for increased drilling consistency
- Double insulated
Rotary Hammer
20 mm (3/4″) Adapted for SDS-PLUS bits
- 2 operation modes -hammering with rotation and rotation only
- Variable speed + reversible rotation
Rotary Hammer
22 mm (7/8″) 2.2 J Rotary Hammer, SDS-PLUS Bits
- High durability in mechanical parts, motor and carbon brush
- 2.2 Joules (EPTA) impact energy delivers high performance
- 2 operation modes – hammering with rotation and rotation only
- Speed and torque in reverse are the same as forward rotation by using brush holder unit
- One-touch sliding chuck enables easy bit change
- Variable speed trigger allows operator to adjust speed based on materials or application
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Ergonomically designed rubberized grip provides more control and comfort
- Side grip with elastomer soft grip
- Easy-to-operate large trigger switch and lock-on button
- Depth gauge for increased drilling consistency
- Double insulated
2-Speed Hammer Drill
20 mm (3/4″) 1,010 W 2-Speed Hammer Drill with Keyed Chuck
- “Hammering with Rotation” or “Rotation Only”
- Powerful 1,010 W motor for heavy duty use
- 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Large trigger switch and 360° swivel side handle for added comfort
- Torque limiting clutch engineered to reduce gear damage by automatically disengaging gears if bit binds
- Conveniently located reverse slide switch for easy access and use
- Recessed lock-on button for continuous use
- Lightweight for reduced operator fatigue
- All-ball bearing construction for longer tool life
- Ergonomic rubberized grip for increased comfort on the job
- Double insulated
Hammer Drill
16 mm (5/8″) 710 W Hammer Drill with Keyed Chuck
- Powerful 710 W motor with 0-3,200 RPM & 0-48,000 IPM for the most demanding applications
- Soft grip handle provides increased comfort on the job
- Industrial aluminum gear housing for durability and long tool life
- In-line positive grip design maximises power thrust
- Keyless chuck for easy bit installation and removal (HP1631)
- Lightweight with large drilling capacity up to 16 mm in concrete
- Large 2-finger trigger for added convenience
- Recessed lock-on button for continuous use
- Reversing switch is conveniently located
- 360° Swivel side handle
- Variable speed control dial enables user to match the speed to the application
- 2-mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Ideal for small self anchoring concrete screws
- Double insulated
- Depth gauge for increased drilling consistency (country-specific)
Magnetic Drill
50 mm (2″) Magnetic Drill
- Heavy duty magnetic drill
- Magnetic base, drill stand, and drill machine all in one package system enables for easy setting
- Powerful magnetic base supports stable and comfortable drilling work
- Equipped with oil supply system for smooth drilling
- Double insulated
Shear Wrench
M16 (5/8″) / M20 (3/4″) / M22 (7/8″) 804 N·m (593 ft.lbs.) Shear Wrench
- Compact and Lightweight Yet Powerful
- Delivers 804 N·m (593 ft.lbs.) of max torque for the most demanding applications
- Anti-slipping mechanism: tool won’t start until inner sleeve engages with bolt tip
- Bolt tip ejecting lever located by power trigger for increased convenience
- Compact design at a length of only 249 mm (9-13/16″)
- Protective rubber bumper positioned at tool body for increased durability
- Light weight design at only 4.8kg (10.6lbs)
- Includes two outer sleeves and one inner sleeve for increased versatility
- All metal gear housing for increased durability
- D-handle design for increased comfort
- No-lock on trigger switch for increased convenience
- Double insulated
Shear Wrench
M22 (7/8″) / M24 (1″) / SHTB22 1,100 N·m (810 ft.lbs.) Shear Wrench
- Shear Wrench for tightening M24 (1″) torque shear bolt
- Efficiently tightens M22 and M24 torque shear bolts
- High rotational speed for more efficient operation
- Lightweight design for easy and comfortable control
- Features lever for ejecting sheared bolt tip
- Anti-slipping mechanism
- Bumper for tool body protection
- Externally accessible brushes for easy serviceability
- Double insulated
