DUC258 - Welcome To Makita

DUC258

DUC258

Cordless Chain Saw

18V LXT Brushless Cordless 200/250mm (8/10″) Chain Saw

• DUC258Z

• DUC258RTE

  • Overview:

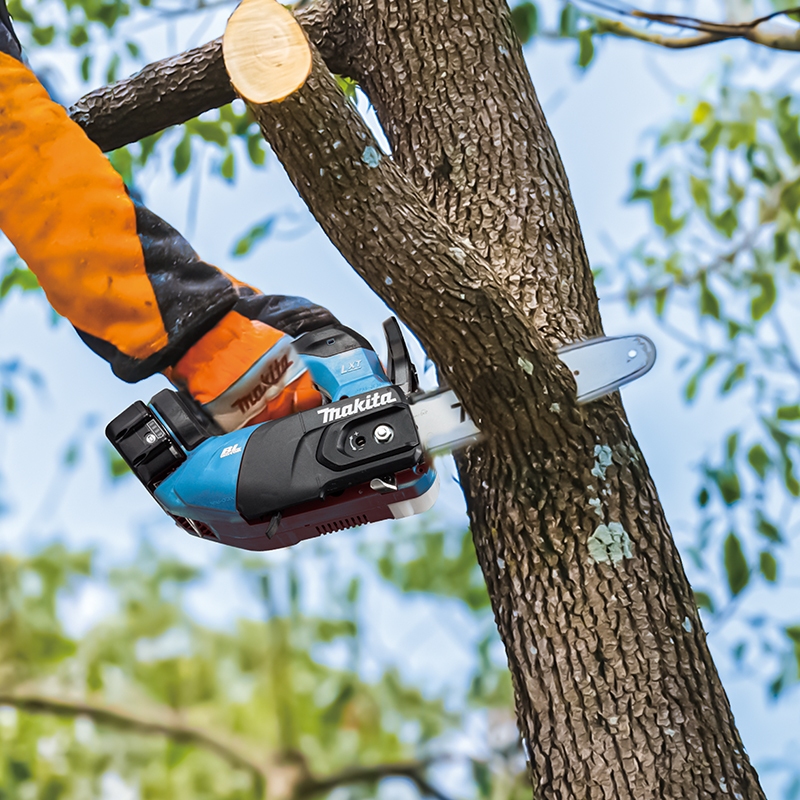

    The DUC258 is a cordless 200/250mm top-handle chainsaw powered by an 18V LXT Li-Ion battery. Designed based on our 23-cc class model suitable for pruning, this model is lighter and offers enhanced maneuverability.
  • Excellent tool balance with optimal center of gravity, reducing strain on the arms during horizontal cutting.
  • Fast acceleration in response to trigger operation enables smooth, continuous cutting tasks like pruning.
  • When excessive force is applied, the tool slows down, making it easy to adjust the load on the cutting edge.
  • If the tool locks due to load, it resumes operation instantly when the load is released without retriggering.
  • Hook for quick one-handed attachment and removal
  • Main power button with tactile feedback and clear warning indicator
  • Water-resistance compatible with XPT (eXtreme Protection Technology)
  • The variable speed trigger allows for speed adjustments based on the material or application.
  • Adjustable automatic chain lubrication with 140 mL oil reservoir
  • The chain oil view window allows the operator to easily check the oil level.
  • Equipped with both mechanical and electric brakes for user protection
  • Captive nut prevents nut loss during guide bar or saw chain replacement.
  • Ergonomic, rubberized soft grip for a secure hold and added comfort
  • Chain type:
    80TXL / 90PX / 25AP



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Chain pitch:
    0.325 / 3/8 / 1/4″



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Chain gauge:

    1.1 / 1.1 / 1.3 mm (0.043 / 0.043 / 0.05″)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Guide bar length :

    200, 250 mm (8, 10″)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Chain speed (at no load):

    0 – 24 m/s



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Direct Drive:

    Yes



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Anti-fall captive nut:

    Yes



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Oil tank capacity:

    140 mL (4.7 oz)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Chain oil view window:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Soft grip:

    Yes



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration level:

    3.3 m/s² (EN62841-1 and EN ISO 11681-2, Mode: Cutting wood)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Vibration:

    1.5 m/s² (EN62841-1 and EN ISO 11681-2, Mode: Cutting wood)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound pressure level:

    92 dB(A) (EN62841-1 and EN ISO 11681-2)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound power level:

    100 dB(A) (EN62841-1 and EN ISO 11681-2)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Noise:

    3 dB(A) (EN62841-1 and EN ISO 11681-2)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H):

    287 x 181 x 194 mm (11-1/4 x 7-1/8 x 7-5/8″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (Battery):

    BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (Attachment):

    w/o Guide bar, Saw chain

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions 2 (L x W x H):

    519 x 181 x 194 mm (20-1/2 x 7-1/8 x 7-5/8″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions 2 (Battery) :

    BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions 2 (Attachment) :

    250mm Guide bar, 80TXL Saw chain

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    3.0 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Battery):

    BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Attachment):

    250mm Guide bar, 80TXL Saw chain, Chain oil

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Tool only):

    1.8 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Tool only) (Attachment):

    w/o Guide bar, Saw chain, Chain oil, Battery

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • DUC258Z: Guide bar 10 191T85-8(1), Saw chain 10 191T89-0(1), Guide bar case 280 413X66-9(1), File Holder 4.0MM(5/32") D-70948(1).
  • DUC258RTE: Guide bar 10 191T85-8(1), Saw chain 10 191T89-0(1), Guide bar case 280 413X66-9(1), File Holder 4.0MM(5/32") D-70948(1), Battery BL1850B set 198013-4(2), Fast Charger DC18RC(1).
