DTC303 - Welcome To Makita

DTC303

DTC303

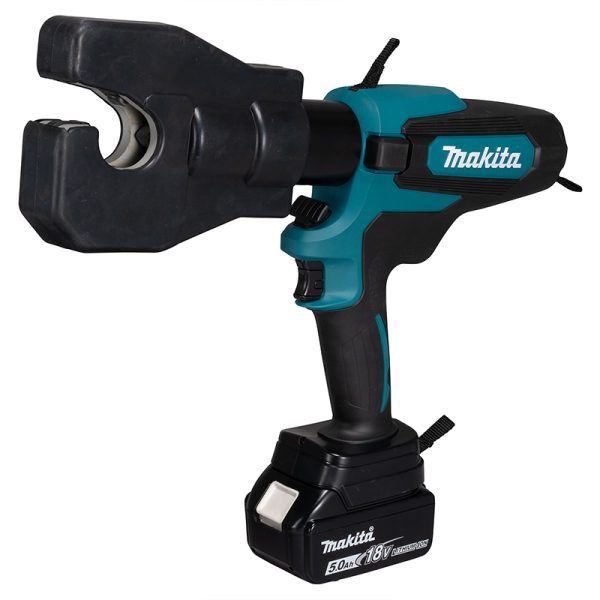

Cordless Crimper

18V LXT Cordless Crimper

  • With a maximum crimping capacity of ø17.5 mm (240 mm²), this tool is capable of crimping terminals onto large-diameter electric wires. This tool is able to perform crimping operations without dies.
  • Crimping capacity
    • Cu: ø17.5 mm (240 mm²)
    • Al: ø17.5 mm (240 mm²)
  • Auto retract function
    • The ram automatically retracts to its original position after completing the crimping operation, enhancing work efficiency.
    • The On/Off setting of the auto retract function can be switched.
  • Single LED job light with afterglow function
  • Trigger-lock function to minimize accidental pulling of the switch trigger

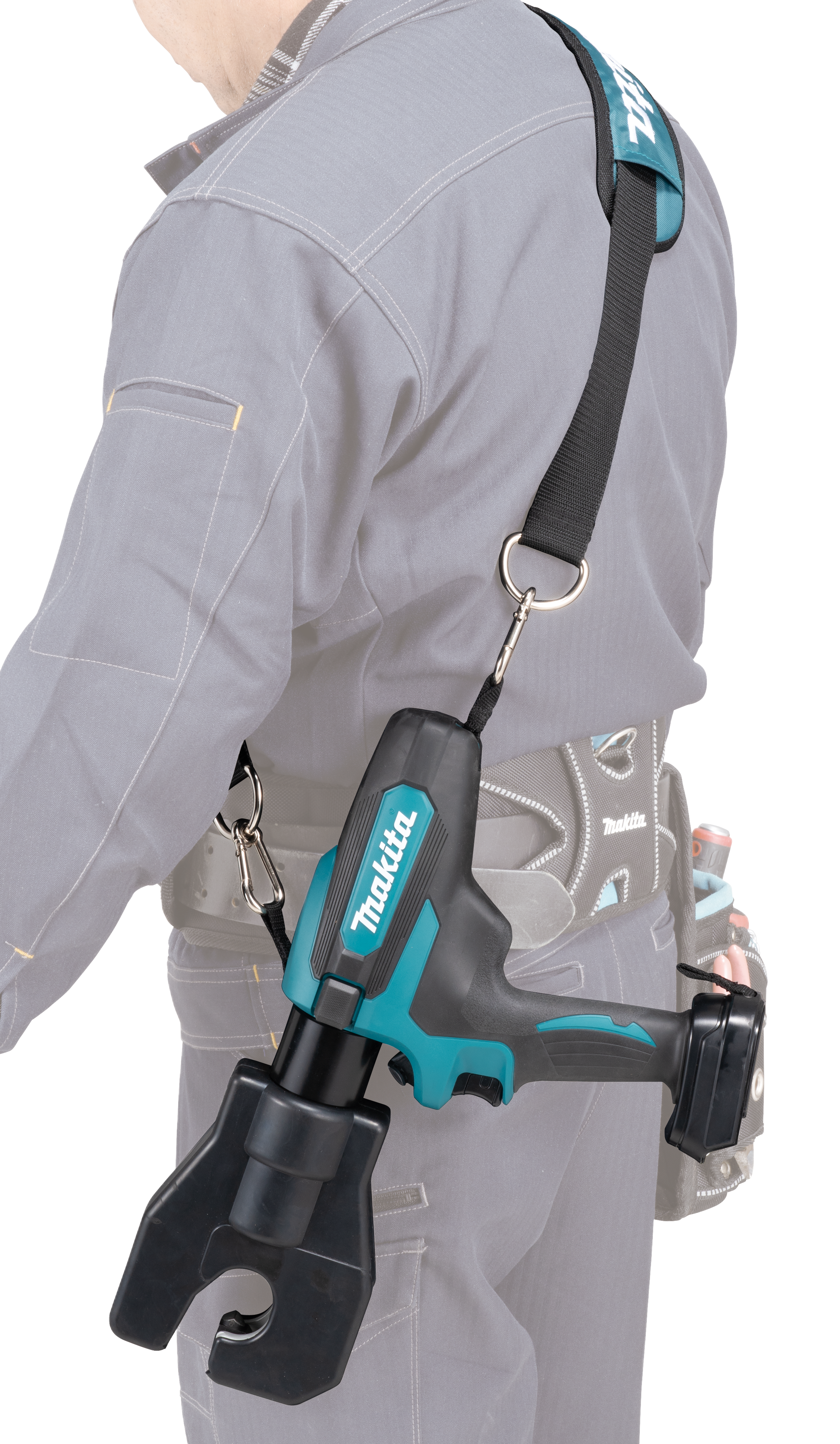

  • Straps on the tool for attaching the optional shoulder strap
  • Soft grip provides increased comfort during use
  • The tool head is capable of rotating 360 degrees
  • Output force:

    60 kN

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Crimping capacity:

    Cu: ø17.5 mm (240 mm²)

    Al: ø17.5 mm (240 mm²)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Auto retract function:

    Yes (Reverse rotation of motor)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • On/Off setting of Auto retract function:

    YES



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H):

    401 x 82 x 348 mm (15-3/4 x 3-1/4 x 13-3/4″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (Battery):

    BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    5.3 – 5.7 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Battery):

    BL1815N – BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • Battery, Charger
