DJV186

DJV186

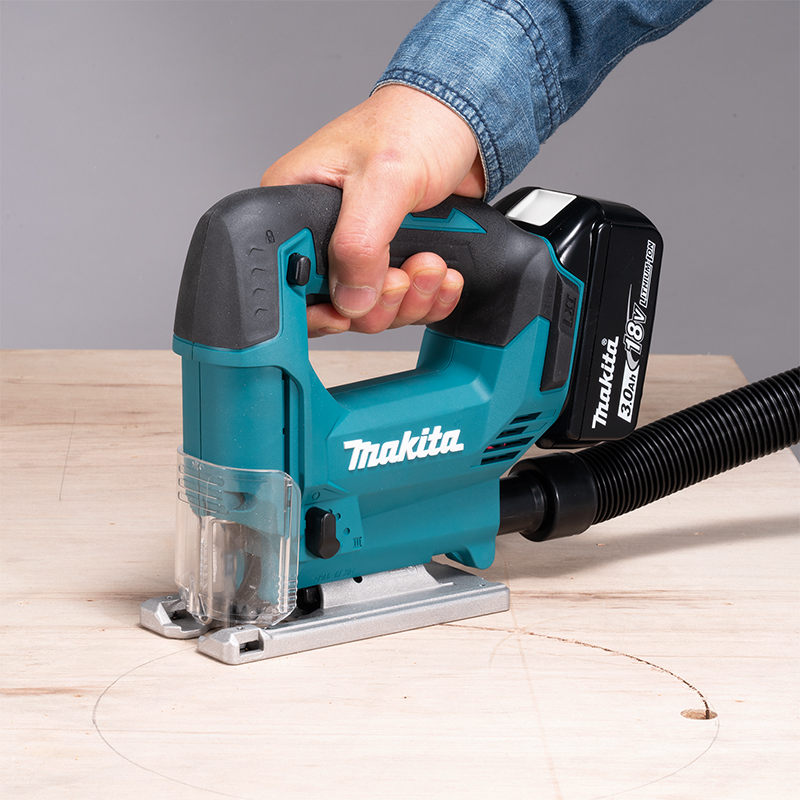

Cordless Jig Saw

18V LXT Cordless Top Handle Jig Saw, 3 Orbital Settings plus Straight Cutting

  • 3 orbital settings plus straight cutting deliver faster and more accurate cuts in a variety of materials.
  • Variable speed control using the trigger enables the user to match the speed to the application for optimal cutting performance.
  • Compact and lightweight for reduced operator fatigue and easy access to tight spaces.
  • Ergonomically designed rubberized grip for increased comfort and control
  • Electric brake rapidly stops the blade after the trigger has been released for increased safety.
  • Through-the-body dust port provides optimal dust management when used with a vacuum cleaner.
  • A dust nozzle can be attached for connection to a Makita vacuum cleaner.
  • Optional accessories
    • The rip fence (guide rule) enables fast, clean, and straight cuts by aligning the rip fence with the side of the workpiece.
    • Use of the rip fence (guide rule) with the circular guide pin enables circle cuts.
    • The support base allows for more stable cuts on bevel cuts and curved cuts.
    • Use of guide rails (lengths of 1,000/1,400/1,500/1,900/3,000 mm) and guide rail adapter enables fast, clean, and straight cuts.
  • Stroke length:
    18 mm (11/16″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Strokes per minute:

    0 – 2,900 minˉ¹

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Capacity:

    Wood: 65 mm (2-9/16″)
    Mild steel: 6 mm (1/4″)
    Aluminum: 10 mm (3/8″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Handle type:

    Top handle

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Bevel range:

    0 – 45 °

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Base plate material:

    Upper structure: Aluminum diecast

    Lower structure: Steel

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration level (EN62841-2-11):

    Cutting boards: 7.5 m/s²
    Cutting sheet metal: 4.2 m/s²

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration K factor (EN62841-2-11):

    Cutting boards: 1.5 m/s²
    Cutting sheet metal: 1.5 m/s²

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound pressure level (EN62841-2-11):

    85 dB(A)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound power level (EN62841-2-11):

    93 dB(A)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Noise K factor (EN62841-2-11):

    3 dB(A)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H) :

    241 – 257 x 81 x 196 mm (9-1/2 – 10-1/8 x 3-3/16 x 7-3/4″)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (Battery):

    BLB182 – BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    1.9 – 2.2 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Battery):

    BL1815N – BL1860B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • DJV186Z: Hex. wrench: 3 783201-2(1), JIGSAW BLADE NO:.B10 A-85628(1)
  • DJV186WVE: Hex. wrench 3 783201-2(1), Plastic case 821938-4(1) JIGSAW BLADE: NO.B10 A-85628(1), Battery BLB182: 1915F6-2(2)
  • DJV186SFJ: Hex. wrench: 3 783201-2(1), NNER TRAY: 836A35-9(1), Connector plastic case: (type 2) 821550-0(1), JIGSAW BLADE NO.B10: A-85628(1), Battery BL1830B:197605-6(2), DC18SD BATTERY CHARGER DC18SD(1)
  • DJV186F001: Hex. wrench 3: 783201-2(1), Connector plastic case (type 2): 821550-0(1), INNER TRAY: 836A35-9(1), JIGSAW BLADE NO.B10: A-85628(1), Battery BL1830B:197605-6(2), DC18WC BATTERY CHARGER DC18WC(1)
