PB003G

Cordless Portable Band Saw

40Vmax XGT BL Cordless Variable Speed Portable Band Saw

• PB003GZ

• 40Vmax XGT battery and BL motor for high speed
• BL motor delivers 3.2 m/s (630 ft./min.) blade speed for faster cutting
• Right angle cutting available when used with an optional stand set.
• Increased work efficiency:
  – Higher voltage XGT batteries reduce load current while maintaining the same output, minimizing heat generation in electrical components
  – Maintains band speed under heavy loads for superior efficiency compared with current models.
• Stable cutting with highly rigid aluminum structure; Rigid aluminum die-cast frame and gear housing minimizes the blade from sliding off the wheel; The rigidity also allows for increasing the tension on the blade to minimize the blade from slipping on the wheel

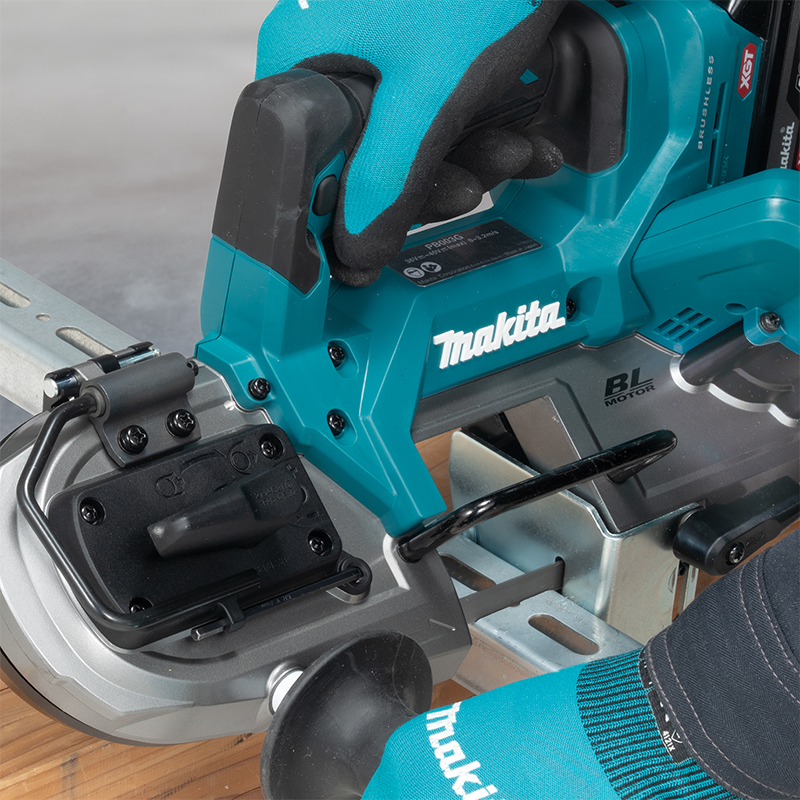

• Catch bracket designed to hit against workpiece in place of the tool body at the end of cutting process.
  It can protect the resin housing from scratches and damage.
• Constant speed control minimizes the reduction in blade speed to provide stable cutting
• Electric brake for maximum productivity and increased operator safety
• Tool-less adjustable stopper plate; The fixing method has been changed from a bolt to a lever, allowing easy position adjustment without tools.
• Easy blade track adjustment simply by turning the screw
• Easy-to-grip handle with elastomer surface for anti-slip
• Four LEDs job light with pre-glow and afterglow functions illuminates the work area
• Easy right angle cutting:
  – Newly developed stand compatible with PB003G and the current model DPB183
  – Achieve precise right-angle cuts easily with the new stand (Bevel cutting and Contour cutting*1 are not available. Maximum cutting capacity when connected to the stand: 55 mm)
  *1: Contour cutting: A cutting method similar to that used on the LB1200F, in which the workpiece is pressed against the blade.
• Stable clamping vise:
  The Vise assembly is designed to slant backward so that it can press the workpiece against both the Guide fence and Base of the Drill stand at a time, providing secure and stable clamping.
