BN001G

BN001G

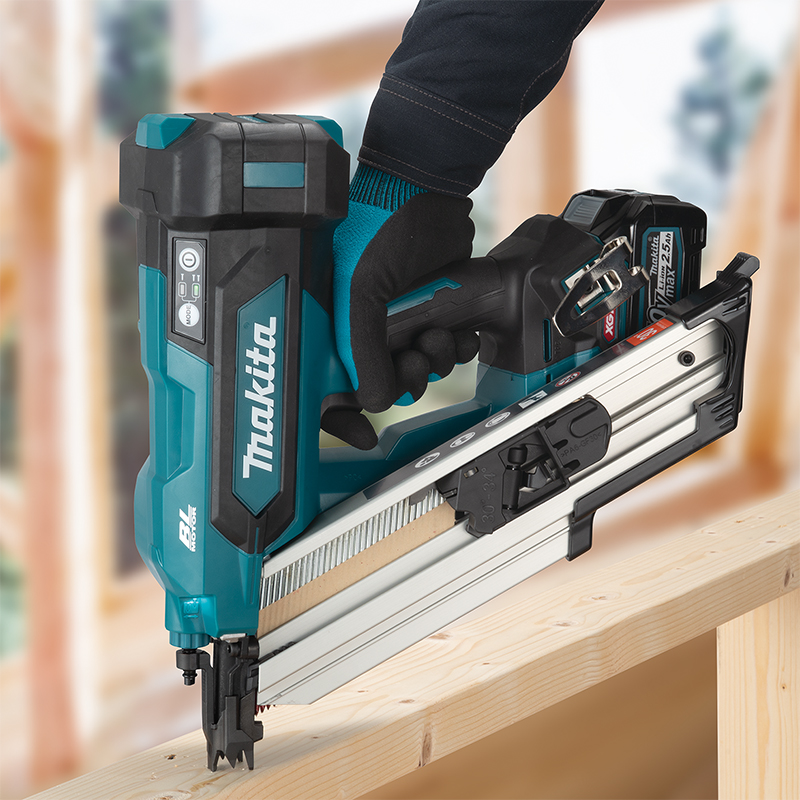

Cordless Framing Nailer

40Vmax XGT Li-Ion Brushless Cordless 90 mm (3-1/2″) Framing Nailer, Clipped-Head

  • Developed from DBN900, but with an XGT Li-Ion battery and more powerful BL motor, this model features:
    Significantly improved rapid firing capability, which is superior to that of our competitors’ models
    Increased compression speed of pneumatic spring that allows for driving nails up to 90mm with a driving feel very close to that of pneumatic nailers
  • Operation mode
    Selectable from Full sequential actuation mode (for single nailing) / Contact actuation mode (for continuous nailing)
  • LED job light
    Single LED with preglow and afterglow functions
  • Driving depth is adjustable with the dial
  • Anti-slip nose
    Tip shape that resists slipping when driving nails at an angle
  • Window for checking remaining nail quantity
    The amount of remaining nails can be checked.
  • Anti-dry fire mechanism
    The anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
  • Hooks
    • Different hooks can be attached to the left and right sides for various work applications.
    • The rafter hook can be attached to the opposite side of the belt hook. The width of the hook portion is 2-1/2″, allowing for hooking on ladders, scaffolding, and 3x timbers.
  • Water-resistance compatible with XPT
  • Drive system:

    Pneumatic spring

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Nail capacity:

    Length: 50 – 90 mm (2 – 3-1/2″)

    Gauge: 2.9 – 3.3 mm (0.113 – 0.131″)

    Collation angle display: 30 – 34 °

    Head shape: Clipped-head

    Max magazine capacity: 58 nails

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Work volume on a full battery charge:

    1,020

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Work volume on a full battery charge (Battery):

    BL4025

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Rapid firing capability per second:

    4

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Rapid firing capability per second (Battery):

    BL4025

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Main power switch button:

    YES

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Hook:

    YES

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Battery capacity and other errors:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration level:

    3.6 m/s² (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Vibration:

    1.5 m/s² (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound pressure level:

    90 dB (A) (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound power level:

    101 dB (A) (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Noise:

    3 dB (A) (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H):

    326 x 186 x 358 mm (12-7/8 x 7-3/8 x 14-1/8″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (Battery):

    BL4025

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    5.3 – 6.5 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Battery):

    BL4020 – BL4080F

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • BN001GZ: Hook assembly - 141X57-7(1), Hook - 347C14-9(1), Hex. wrench 4 - 783202-0(1), Plastic case - 821943-1(1)
  • BN001GD201 : Hook assembly - 141X57-7(1), Hook - 347C14-9(1), Hex. wrench 4 - 783202-0(1), Plastic case - 821943-1(1), Battery BL4025 - 191B41-0(2), DC40RA FAST CHARGER DC40RA(1)
