HS014G - Welcome To Makita

HS014G

Cordless Circular Saw

40Vmax XGT BL AWS Cordless 125 mm Circular Saw, Electric Brake, Soft Start, Single LED Light

  • 40Vmax XGT BL AWS Cordless 125 mm Circular Saw, Electric Brake, Soft Start, Single LED Light
  • 40Vmax XGT Li-Ion battery and BL motor provide high power and excellent cutting performance
  • Compact yet powerful enough to cut a 45 mm thick lumber in a single pass. Also features flush-cutting capability.
  • Max cutting depth: 47 mm

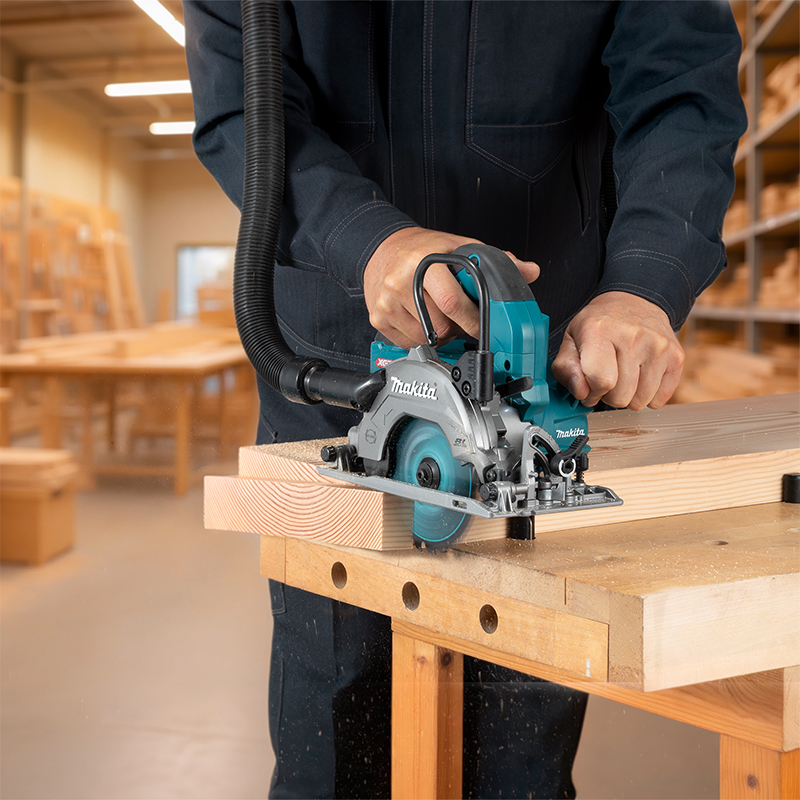

    Easily cuts 45 mm thick lumber,which is often used for framing, flooring or the like, in a single pass.
  • Flush Cutting Capability

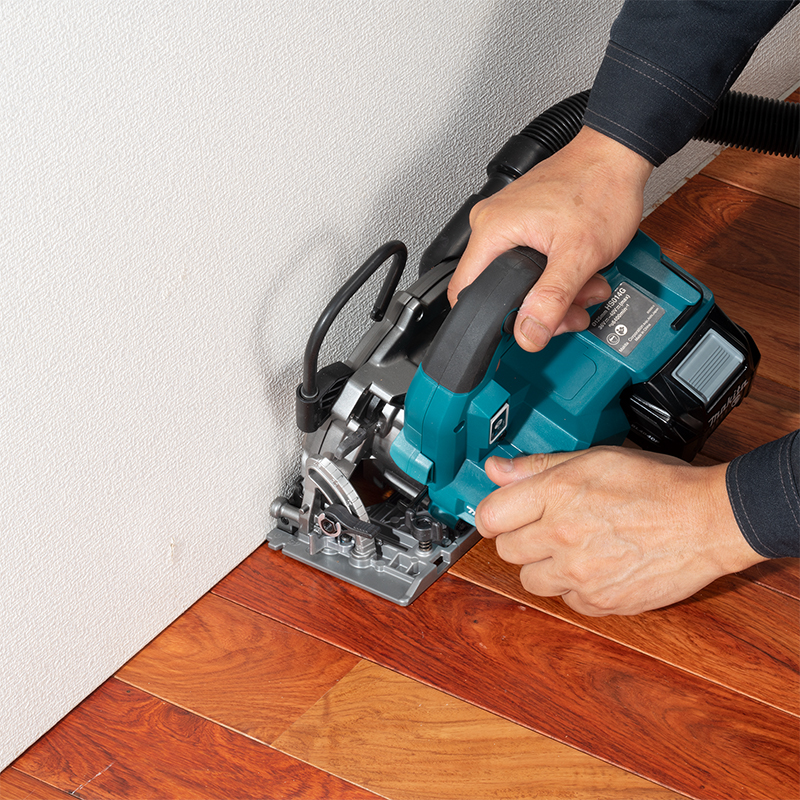

    Close-to-wall cutting is allowed by removing Sub base and then by setting bevel angle to 15°left.
    (Sub base can be removed without tool.)
  • Capable of flush cutting, yet compliant with overseas standards
    – 125 mm circular saw with flush cutting capability is now available on overseas markets due to the compliance achieved by reducing the opening angle of the Safety cover.
    – An added built-in Open lever allows user to manually raise the safety cover, when required in an operation like flush cutting.
  • High water-resistance compatible with XPT
  • Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
  • Single LED job light with preglow and afterglow functions for more visibility
  • Blower function blows sawdust off the cut line ahead for a better cutting view
  • Soft grip provides increased comfort on the job
  • Electric brake for maximum productivity and increased operator safety
  • Soft start suppresses start-up reaction for more control and better accuracy
  • Aluminum diecast Sub Base
    – Fine parallel adjustment of base
    – Fine right angle adjustment of base
  • Compatible with Guide rail adapter
  • Positive stopper of cutting depth
  • Left bevel cut function (up to 5 degrees)
  • Active Feedback sensing Technology (AFT)
    Automatically detects a sudden drop in blade speed during kickback and shuts off the motor to help reduce reaction force.
  • Wheel diameter:

    125 mm (4-7/8″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Hole diameter:

    20 mm (13/16″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • No load speed:

    6,400 minˉ¹





    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Bevel range:

    Left: 15 – Right: 45 °

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Max cutting capacity:

    0°: 47 mm (1-7/8″)

    15° left: 20 mm (13/16″)

    45° right: 30 mm (1-3/16″)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Material:

    Base plate: Aluminum diecast

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Fine parallel adjustment of base:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Fine right angle adjustment of base:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Positive stopper of cutting depth:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Close-to-wall cutting:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration level:

    1.0 m/s² (EN62841-2-5, Mode: Cutting wood)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Vibration:

    1.5 m/s² (EN62841-2-5, Mode: Cutting wood)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound pressure level:

    94 dB(A) (EN62841-2-5)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound power level:

    102 dB(A) (EN62841-2-5)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Noise:

    3 dB(A) (EN62841-2-5)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H):

    264 x 203 x 246 mm (10-3/8 x 8 x 9-11/16″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (Battery):

    BL4040F

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    3.3 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Battery):

    BL4040F

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • HS014GZ: Dust nozzle set 194202-9(1), Hex. wrench 5 783217-7(1), TCT SAW EFFI 125X25T E-28880(1)
