DBN620 - Welcome To Makita

DBN620

DBN620

Cordless Finish Nailer

18V LXT Brushless BL Cordless 15 Ga 64 mm (2-1/2″) Finish Nailer

• DBN620Z

• DBN620RFJ

  • Overview:

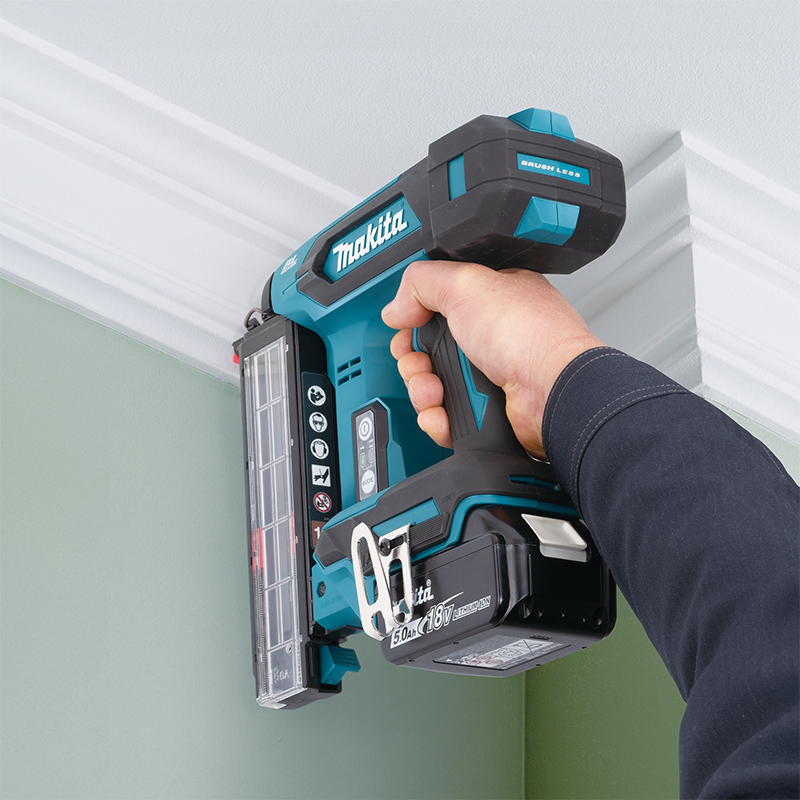

    The DBN620 is a 64 mm (2-1/2″) cordless finish nailer compatible with 15 gauge finish nails (angled-type), powered by an 18V LXT Li-Ion battery. Featuring a pneumatic spring mechanism, the recoil when driving nails is lighter and it offers a feel similar to pneumatic nailers, making it suitable for interior work and other nailing tasks. It is reliably able to drive 15 gauge finish nails up to 64 mm into hard woods such as red oak, while maintaining sufficient work capacity.
    Without the hassle of a compressor and hose, the lightweight design offers better maneuverability and zero ramp-up time. It is designed to ensure the center of gravity remains optimal regardless of which compatible battery is attached, making it easy to aim and reducing arm strain and fatigue.
  • Rapid firing capability of 3.2 shots per second
  • Drives a range of 15 gauge finish nails from 32 mm (1-1/4″) to 64 mm (2-1/2″); magazine capacity up to 100 nails
  • 2-mode selector switch for Full sequential actuation mode (for single nailing) or
    Contact actuation mode (for continuous nailing)
  • Slim nose with an easy-to-aim ejection section for better visibility when driving nails
  • Anti-dry fire mechanism avoids dry firing by locking the contact arm when the remaining nails are between 4 and 6.
  • Easy to use toolless depth adjustment dial for a wide variety of finish applications
  • Built-in LED light illuminates the work area
  • Ergonomically designed handle with soft grip provides increased comfort
  • Nails can be removed without tools in case of jamming
  • Nail view window enables fast identification of remaining nail capacity
  • Water-resistance compatible with XPT
  • Hook can be attached to the left and right sides.

Battery and charger are sold separately.

  • Nail capacity:

    Length: 32 – 64 mm (1-1/4 – 2-1/2″)

    Gauge: 15 Ga

    Max magazine capacity: 108 nails

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Capacity:

    Collation angle display: 34°

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Shot q'ty on a single full battery charge:

    800 shots

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Shot q'ty on a single full battery charge (Battery):

    BL1820B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Rapid firing capability per second:

    3.2

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Rapid firing capability per second (Battery):

    BL1820B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Nail jam removal:

    Tool-less

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Main power switch button:

    Yes

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Battery capacity and other errors:

    YES

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration level:
    2.7 m/s² (EN60745-2-16)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Vibration:

    1.5 m/s² (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound pressure level:

    86 dB(A) (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound power level:

    97 dB(A) (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Uncertainty (K) for Noise:

    3 dB(A) (EN60745-2-16)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H):

    297 x 142 x 338 mm (11-3/4 x 5-5/8 x 13-1/4″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    3.1 kg

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight (Battery):

    BL1820B

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • DBN501Z: Hook: 346317-0(1)
  • DBN501RFJ: Hook: 346317-0(1), Connector plastic case (type 4): 821552-6(1), Inner tray: 836366-0(1), Battery BL1830B: 197605-6(2), Fast Charger: DC18RC (1)
