JV103D

JV103D

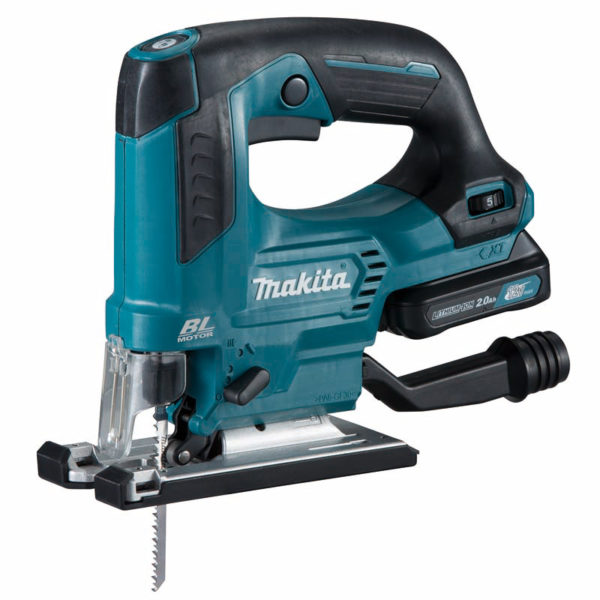

Cordless Jig Saw

12V max CXT BL Brushless Cordless Top Handle Jig Saw, 3 Orbital Settings Plus Straight Cutting, LED Light

  • Up to 2.2X Faster Cutting and 2.2X Longer Runtime*¹
  • Disabling soft no-load rotation function in operator’s preference
  • Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
  • Toolless blade clamp for easy blade change
  • Independent dust nozzle can be attached for connection to Makita vacuum cleaner and doesn’t require to be removed even when bevel cutting
  • Lock on button for continuous operation
  • Delivers 800-3,000 strokes per minute for faster cutting
  • 3 orbital settings plus straight cutting for use in a wide range of materials
  • Compact and lightweight for reduced operator fatigue
  • Built-in dust blower clears the line of cut for increased accuracy
  • Soft grip handle provides increased comfort on the job
  • Aluminum die-cast base adjusts from 0°-45° right to left

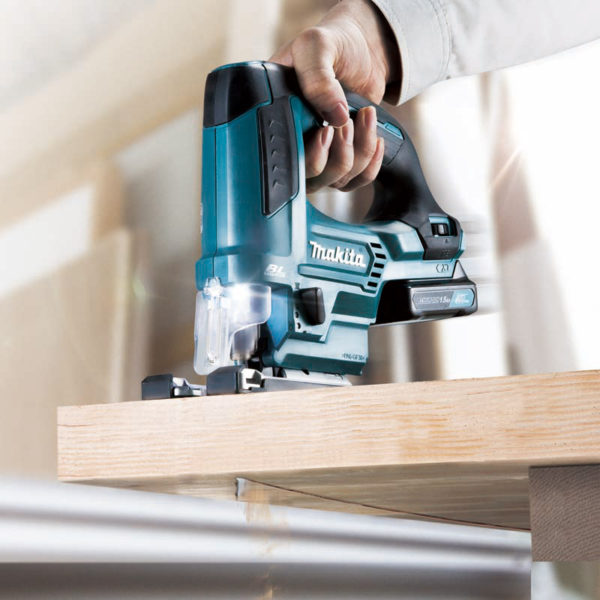

  • LED job light brightly illuminates the cut line for easy cutting in the dark place
  • Electric brake for increased operator safety
  • On-board wrench for fast bevel adjustments and blade changes
  • Two-stage safety trigger switch prevents accidental start up
  • Optional handy rip fence (guide rule) allows you to do extra-accurate straight cuts and circular cuts
  • Uses bayonet type blades
  • Soft start feature for smooth start-ups. Battery protection circuit protects against overloading, over-discharging and over-heating. Slide style battery and improved ergonomic grip. Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size. Multi-contact terminals ensure stable contact with battery even under extreme vibration
  • Max Cutting Capacity at 90° :
    Wood / Aluminum / Mild Steel: 90 / 20 / 10 mm (3-1/2″ / 13/16″ / 3/8″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Length of Stroke :
    23 mm (7/8″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Strokes Per Minute (SPM) :
    800 – 3,000
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration Level :
    Cutting Boards: 8.5 m/s²
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration K Factor :
    Cutting Boards: 1.5 m/s²
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration Level :
    Cutting Sheet Metal: 6.0 m/s²
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration K Factor :
    Cutting Sheet Metal: 1.5 m/s²
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound Pressure Level :
    85 dB(A)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound Power Level :
    96 dB(A)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Noise K Factor :
    3 dB(A)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H) :
    237x76x206 mm (9-3/8″x3″x8-1/8″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight :

    1.9 – 2.0 kg (4.1 – 4.4 lbs.)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • Jig Saw Blade, Hex Wrench, Cover Plate (country-specific), Dust Nozzle (country-specific), Dust Cover (country-specific), Battery, Charger
