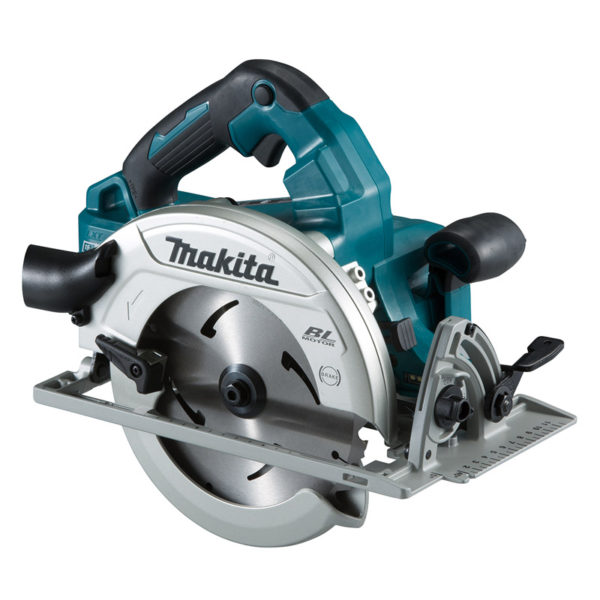

DHS780

Cordless Circular Saw

18V X2 (36V) LXT BL ADT Cordless   190/185 mm (7-1/2″ / 7-1/4″) Magnesium Circular Saw, Electric Brake, Soft Start, Dual LED Light

  • 6,000 RPM for Fast Cutting
  • 18V solution for corded power demands
  • Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
  • BL motor delivers 6,000 RPM for fast cutting
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Large cutting capacity (68.5 mm at 90°) and bevel capacity (0° – 56°) with a positive stop at 22.5° and 45°
  • Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
  • Overload alert using ADT lamp
  • Optional hook is compatible with 3X materials
  • High visibility of scale enables to adjust the scale without looking into the scale thanks to separation and relocation of scale
  • Electric brake for maximum productivity and increased operator safety
  • Greater blade visibility from motor side
  • Dual LED lights for better illumination and more accurate work
  • Magnesium components create lightweight saws that are well-balanced and jobsite tough
  • Soft start for smooth start-ups
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Soft grip provides increased comfort on the job
  • Lock-off (2 stage) safety switch for increased operator safety
  • Battery protection circuit protects against overloading, over-discharging and over-heating. Optional handy rip fence (guide rule) allows you to do extra-accurate straight cuts
Share on :
  • Blade Diameter:

    190 / 185 mm (7-1/2″ / 7-1/4″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Hole Diameter:

    15.88 / 20 / 30 mm (5/8″ / 13/16″ / 1-3/16″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Max Cutting Capacity:

    90°: 68.5 / 66 mm (2-11/16″ / 2-5/8″)

    45°: 47.5 / 45.5 mm (1-7/8″ / 1-13/16″)

    56°: 35.5 / 34 mm (1-3/8″ / 1-5/16″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • No Load Speed (RPM):
    6,000
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Max Output:

    1,800 W

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration Level:

    Cutting Wood: 2.5 m/s² or less

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration K Factor:

    Cutting Wood: 1.5 m/s²

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration Level:

    Cutting Metal: 2.5 m/s² or less

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration K Factor:

    Cutting Metal: 1.5 m/s²

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound Pressure Level:
    93 dB(A)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound Power Level:

    104 dB(A)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Noise K Factor:

    3 dB(A)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H):

    342x200x290 mm (13-1/2″x7-7/8″x11-3/8″)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    4.2 – 4.8 kg (9.3 – 10.7 lbs.)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • TCT Saw Blade, Dust Nozzle, Hex Wrench, Battery, Charger
