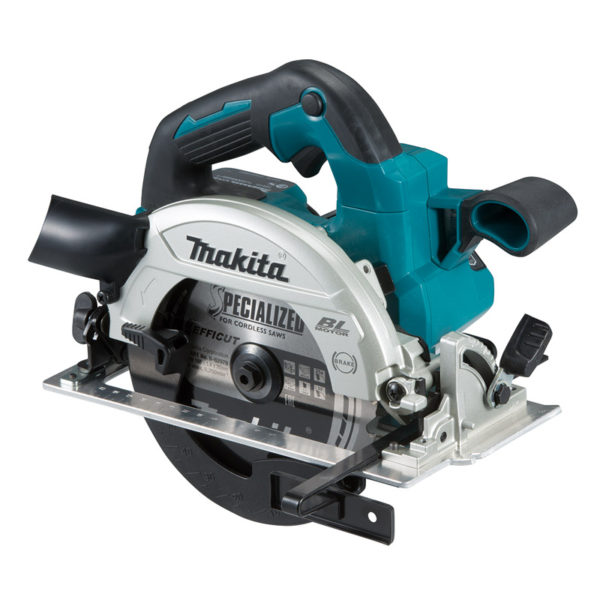

DHS661

Cordless Circular Saw

18V LXT BL AWS ADT Cordless 165 mm (6-1/2″) Circular Saw, Electric Brake, Soft Start, Dual LED Lights

  • Compact and Lightweight Design for Better Maneuverability
  • Indication lamp using ADT (Automatic torque Drive Technology)
  • High-efficiency BL motor provides higher power and more work amount
  • Smooth cutting at high rotational speed of 5,000 RPM
  • Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
  • ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
  • Easy-to-operate lock off button for increased maneuverability
  • Better visibility of blade tip by changing the position of front grip
  • Easy-to-read scale markings for easier adjustments
  • Optional hook for hanging on 2X materials
  • Blower function blows sawdust off the cut line ahead for a better cutting view
  • Dual LED job lights with preglow and afterglow functions for more visibility
  • Soft grip provides increased comfort on the job
  • Large rubberized levers for quick and easy depth and bevel adjustments
  • Electric brake for maximum productivity and increased operator safety
  • Soft start suppresses start-up reaction for more control and better accuracy
  • Dust nozzle is attachable for connecting to vacuum cleaner
  • Aluminum base with 45 and 50 degrees bevel cutting capacity
  • Rear dust exhaust port. Large, comfortable front grip. Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions.
Share on :
  • Blade Diameter:
    165 mm (6-1/2″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Hole Diameter:
    15.88 / 20 mm (5/8″ / 13/16″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Max Cutting Capacity:
    90°: 57 mm (2-1/4″)
    45°: 41 mm (1-5/8″)
    50°: 37 mm (1-7/16″)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • No Load Speed (RPM):

    5,000



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Max Output:
    680 W
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration Level:
    Cutting Wood: 2.5 m/s² or less
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Vibration K Factor:
    Cutting Wood: 1.5 m/s²
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound Pressure Level :
    93 dB(A)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Sound Power Level :
    104 dB(A)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Noise K Factor :
    3 dB(A)



    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Dimensions (L x W x H) :
    270x186x250 mm (10-5/8″x7-3/8″x9-7/8″)
    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

  • Net weight:

    2.9 – 3.2 kg (6.4 – 7.1 lbs.)

    Lorem ipsum dummy

    Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.Lorem ipsum is a dummy text.

Standard Accessories:

  • TCT Saw Blade, Hex Wrench, Rip Fence (Guide Rule), Dust Nozzle (country-specific), Battery, Charger
